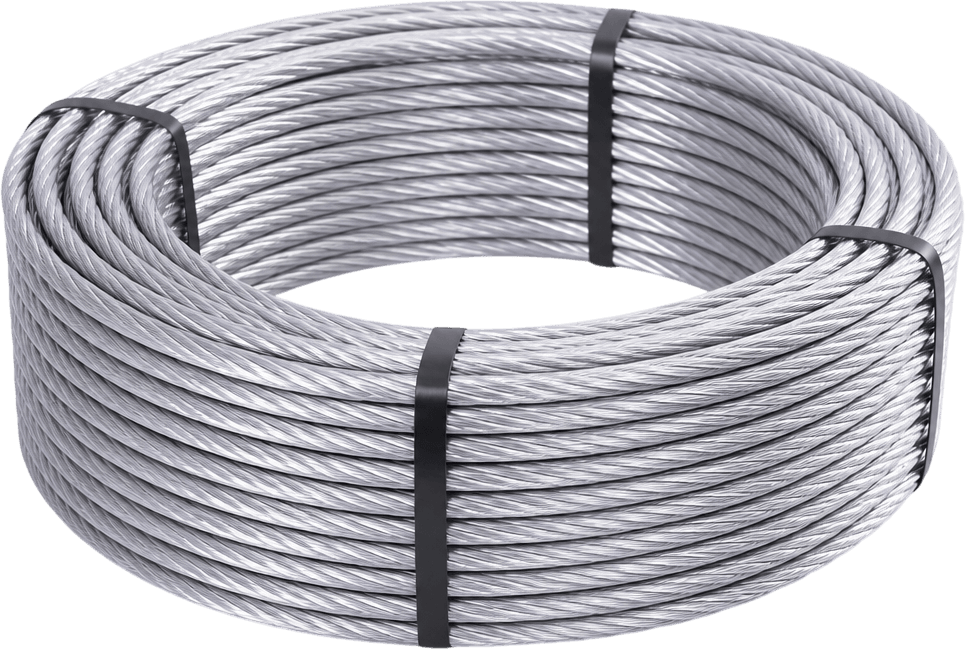

ACSR Conductors (IS 398-II)
True Power Aluminum Conductors Steel Reinforced
Reliable overhead conductors engineered with aluminium strands and a steel-reinforced core.
Technical Specifications Table
| Code Word | Nominal Aluminium Area (sq.mm) | Stranding (Alum./Steel) | Sectional Area (Alum.) (sq.mm) | Sectional Area (ACSR Total) (sq.mm) | Overall Dia (mm) | Weight (kg/km) | Resistance @20°C (Ohm/km) | Breaking Load (kN) | Copper Equivalent (sq.mm) |
|---|---|---|---|---|---|---|---|---|---|
| Weasel | 30 | 6/2.59 + 1/2.59 | 31.61 | 36.88 | 7.77 | 128 | 0.9291 | 11.12 | 19 |
| Rabbit | 50 | 6/3.35 + 1/3.35 | 52.88 | 61.70 | 10.05 | 214 | 0.5524 | 18.25 | 32 |
| Raccoon | 80 | 6/4.09 + 1/4.09 | 78.83 | 91.97 | 12.27 | 319 | 0.3712 | 26.91 | 48 |
| Dog | 100 | 6/4.72 + 7/1.57 | 105.00 | 118.50 | 14.15 | 394 | 0.2792 | 32.41 | 64 |
| Panther | 200 | 30/3.00 + 7/3.00 | 212.10 | 61.70 | 21.00 | 974 | 0.1391 | 89.67 | 129 |
