Household & Industrial FRLSH Cables – IS 694:2010
High Quality Electrical Wiring Solutions

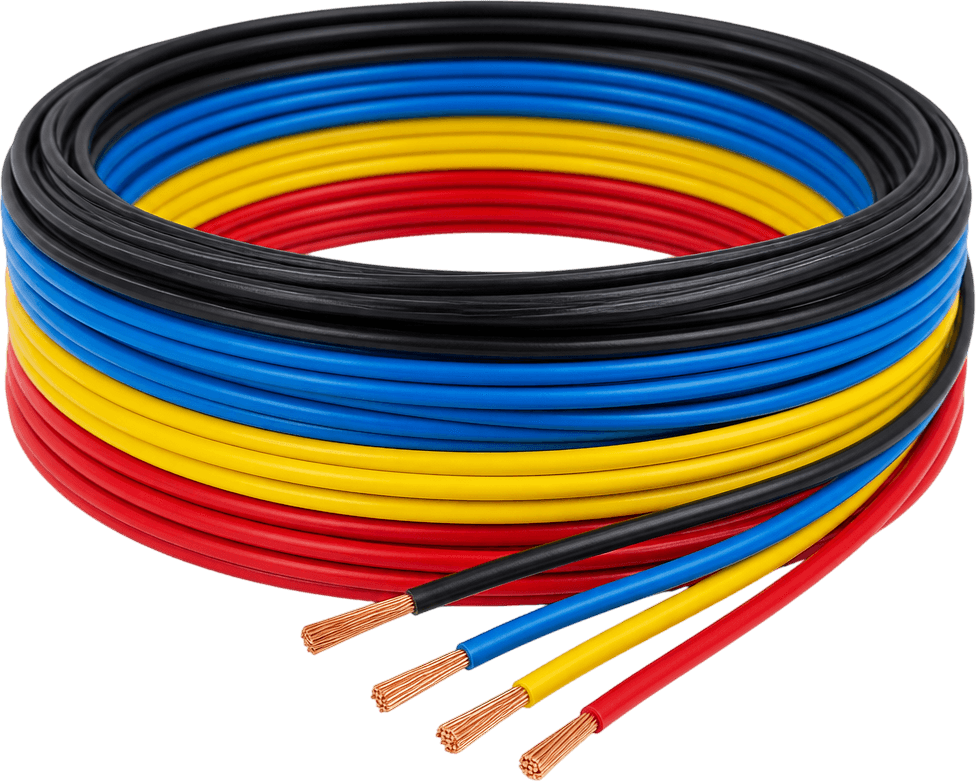

Flame Retardant Low Smoke Low Halogen (FR-LSH) PVC Insulated Flexible Cables
True Power FRLSH PVC insulated industrial single core and multi-core flexible cables are engineered for safe, durable, and high-performance electrical wiring. Widely used in machine tools, control panels, appliances, industrial machinery, and installations across residential, commercial, and industrial sectors.
99.97% Pure Electrolytic Grade Copper
- High conductivity (>100%)
- Low resistance for efficient power transmission
- Excellent flexibility due to annealed & bunched conductors
FRLSH PVC Insulation Benefits
- High insulation resistance
- Superior dielectric strength
- Low smoke emission during fire
- Low halogen for enhanced safety
Insulated and sheathed using FRLSH PVC compounds with high oxygen index and temperature resistance, which:
- Restrict flame propagation
- Reduce toxic smoke emission
- Enhance safety in fire-prone environments
- Improve mechanical strength and abrasion resistance
- Insulated cores are laid together to form a core assembly
- Colour coding as per IS / International standards for easy identification
- Outer PVC sheathing provides durability, flexibility, and ease of stripping
- Manufactured as per IS 694:2010
- Conductor standards: IS 8130
- Voltage grade: Up to 1100 Volts
- Conductor type: Class 5 Flexible Copper Conductor
- Approved by ISI Mark, FIA, TAC
- Also available as per BS 6004 & BS 6500 (for export markets)
- Single Core: 0.5 sq. mm to 70 sq. mm
- Multi Core: 0.5 sq. mm to 2.5 sq. mm (up to 25 cores)
Ideal for:
- Household wiring
- Industrial electrical installations
- Control panel wiring
- Appliance wiring
- Flexible power cables for machinery
Technical Specifications Table (IS 694:2010)
| Nominal Area (sq.mm) | Resistance (Ω/km) | Current Rating (Amp) | Insulation Thickness (mm) | Overall Dia Unsheathed (mm) | Sheath Thickness (mm) | Overall Dia Sheathed (mm) |
|---|---|---|---|---|---|---|
| 0.5 | 39.00 | 4 | 0.6 | 2.00 | 0.9 | 4.00 |
| 0.75 | 26.00 | 7 | 0.6 | 2.30 | 0.9 | 4.25 |
| 1.0 | 19.50 | 12 | 0.6 | 2.45 | 0.9 | 4.85 |
| 1.5 | 13.30 | 15 | 0.6 | 2.75 | 0.9 | 5.15 |
| 2.5 | 7.98 | 20 | 0.7 | 3.50 | 1.0 | 5.90 |
| 4 | 4.95 | 27 | 0.8 | 4.10 | 1.0 | 6.70 |
| 6 | 3.30 | 35 | 0.8 | 4.75 | 1.1 | 7.35 |
| 10 | 1.91 | 46 | 1.0 | 6.00 | 1.3 | 8.60 |
| 16 | 1.21 | 62 | 1.0 | 7.10 | 1.4 | 9.90 |
| 25 | 0.780 | 80 | 1.2 | 8.80 | 1.4 | 11.60 |
| 35 | 0.554 | 102 | 1.2 | 10.10 | 1.6 | 13.30 |
| 50 | 0.386 | 138 | 1.4 | 12.50 | 2.0 | 16.50 |
| 70 | 0.272 | 214 | 1.4 | 13.90 | 2.2 | 18.30 |
Why Choose FRLSH Cables for Electrical Wiring?
- Fire-resistant & low smoke cables for safety-critical applications
- High-quality copper for efficient power transmission
- Durable PVC sheathing for long life
- ISI certified cables for reliable performance
- Best suited for residential, industrial & commercial wiring
