House Hold Cable IS:694:2010
True Power Flat Cable Construction

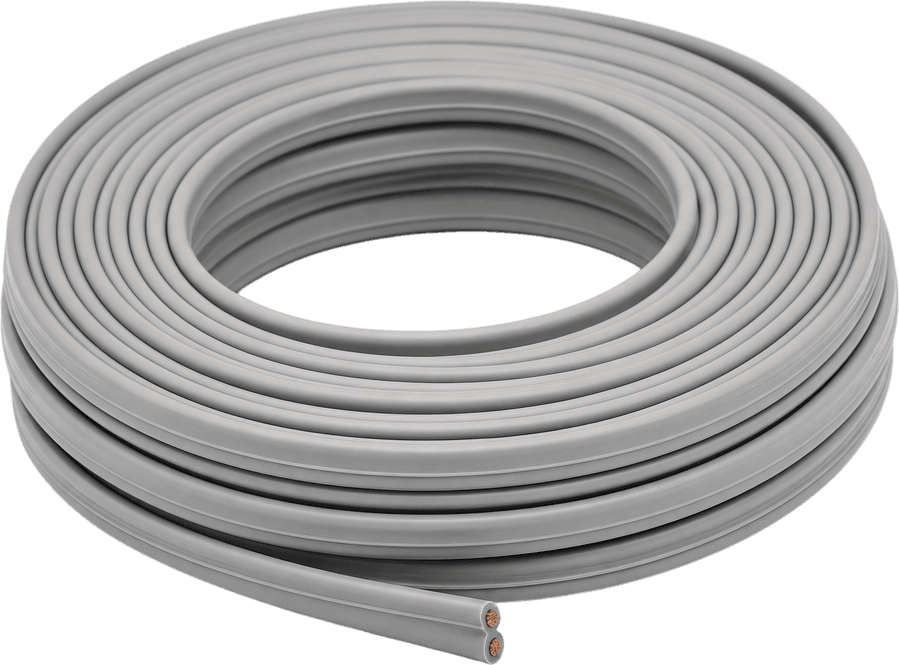

True Power Flat Cable (IS 694)
- Conductor: EC grade flexible copper conductor for high conductivity and flexibility
- Insulation: PVC insulation
- Sheath: PVC sheathing
- Generally conforms to IS 694 standard for electrical cables
Application
These PVC insulated and sheathed 3 core flat cables are widely used for providing electrical connections to submersible pump motors.
They are manufactured for severe, tough and difficult operating conditions. As tube-well slots are narrow, the flat cable design is ideal for these applications.
- Conform to and are marked IS 694:1990 up to 4.00 sq. mm.
- Sizes above 4.00 sq. mm generally conform to IS 694:1990 standards
- Ideal for: submersible pumps, agricultural applications and industrial water systems
Features
- Higher current carrying capacity
- Highly thermally stable insulation
- Longer flex life for durability
- Excellent mechanical and electrical properties
- Operating temperature: -15°C to +70°C / +90°C
PVC Insulated & Sheathed Annealed Copper Conductor Multicore Cables
| Size (sq. mm) | Size (mm) | Current Rating (Amp) | 2 Core (mm) | 3 Core (mm) | 4 Core (mm) |
|---|---|---|---|---|---|
| 0.50 | 16 / 0.20 | 4 | 6.20 | 6.60 | 7.20 |
| 0.75 | 24 / 0.20 | 7 | 6.80 | 7.20 | 7.90 |
| 1.00 | 32 / 0.20 | 11 | 7.00 | 7.50 | 8.10 |
| 1.50 | 48 / 0.20 | 14 | 7.60 | 8.10 | 9.00 |
| 2.50 | 80 / 0.20 | 19 | 9.00 | 9.60 | 10.50 |
| 4.00 | 56 / 0.30 | 26 | 10.60 | 11.30 | 12.40 |
| 6.00 | 84 / 0.30 | 33 | 12.60 | 13.40 | 15.20 |
| 10.00 | 140 / 0.30 | 45 | 16.00 | 17.00 | 18.80 |
| 16.00 | 226 / 0.30 | 60 | 18.80 | 20.10 | 22.20 |
| 25.00 | 354 / 0.30 | 75 | 24.00 | 25.60 | 28.20 |
