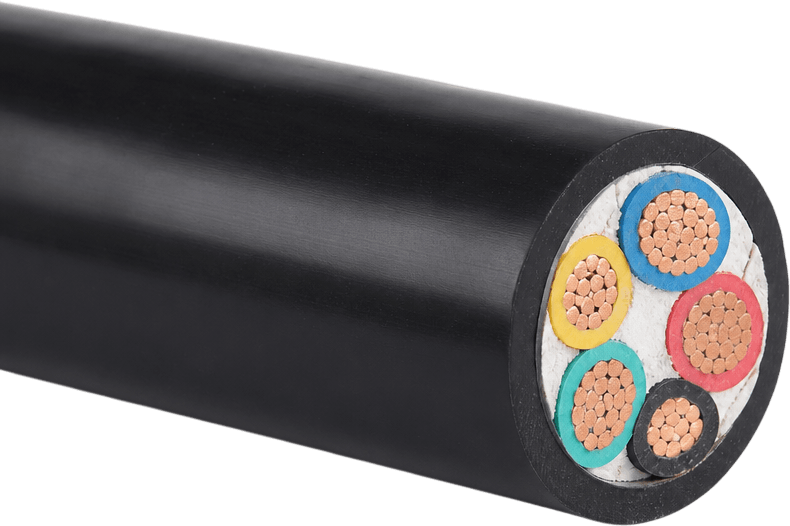

True Power Multicore Cable (IS 694:2010)
Technical Table
Technical dimensions, insulation, sheath and conductor-resistance data.
| No. of Cores | Nominal Cross Sectional Area (Sq. mm) | Insulation Thickness (mm) | Max. D.C. Conductor Resistance @20°C (Ω/km) | Sheath Thickness (mm) | Max Overall Dimension (mm) |
|---|---|---|---|---|---|
| 1 | 0.5 | 0.6 | 39.0 | 0.9 | 4.3 |
| 2 | 0.5 | 0.6 | 39.0 | 0.9 | 6.9 |
| 3 | 0.5 | 0.6 | 39.0 | 0.9 | 7.3 |
| 4 | 0.5 | 0.6 | 39.0 | 0.9 | 8.0 |
| 1 | 0.75 | 0.6 | 26.0 | 0.9 | 4.5 |
| 2 | 0.75 | 0.6 | 26.0 | 0.9 | 7.3 |
| 3 | 0.75 | 0.6 | 26.0 | 0.9 | 7.7 |
| 4 | 0.75 | 0.6 | 26.0 | 0.9 | 8.4 |
| 1 | 1 | 0.6 | 19.5 | 0.9 | 4.7 |
| 2 | 1 | 0.6 | 19.5 | 0.9 | 7.6 |
| 3 | 1 | 0.6 | 19.5 | 0.9 | 8.1 |
| 4 | 1 | 0.6 | 19.5 | 0.9 | 8.8 |
| 1 | 1.5 | 0.6 | 13.3 | 0.9 | 5.4 |
| 2 | 1.5 | 0.6 | 13.3 | 0.9 | 8.9 |
| 3 | 1.5 | 0.6 | 13.3 | 0.9 | 9.4 |
| 4 | 1.5 | 0.6 | 13.3 | 1.0 | 10.4 |
| 1 | 2.5 | 0.70 | 7.98 | 1.0 | 6.2 |
| 2 | 2.5 | 0.70 | 7.98 | 1.0 | 10.3 |
| 3 | 2.5 | 0.70 | 7.98 | 1.0 | 10.9 |
| 4 | 2.5 | 0.70 | 7.98 | 1.0 | 12.0 |
| 1 | 4 | 0.80 | 4.95 | 1.0 | 6.8 |
| 2 | 4 | 0.80 | 4.95 | 1.0 | 11.6 |
| 3 | 4 | 0.80 | 4.95 | 1.0 | 12.4 |
| 4 | 4 | 0.80 | 4.95 | 1.0 | 13.6 |
| 1 | 6 | 0.80 | 3.30 | 1.1 | 7.5 |
| 2 | 6 | 0.80 | 3.30 | 1.1 | 13.0 |
| 3 | 6 | 0.80 | 3.30 | 1.2 | 13.8 |
| 4 | 6 | 0.80 | 3.30 | 1.2 | 15.5 |
| 1 | 10 | 1.00 | 1.9 | 1.3 | 9.4 |
| 2 | 10 | 1.00 | 1.9 | 1.3 | 16.5 |
| 3 | 10 | 1.00 | 1.9 | 1.4 | 17.7 |
| 4 | 10 | 1.00 | 1.9 | 1.4 | 19.5 |
| 1 | 16 | 1.00 | 1.2 | 1.4 | 10.9 |
| 2 | 16 | 1.00 | 1.21 | 1.4 | 19.4 |
| 3 | 16 | 1.00 | 1.21 | 1.4 | 20.6 |
| 4 | 16 | 1.00 | 1.21 | 1.4 | 23.0 |
| 1 | 25 | 1.20 | 0.780 | 1.4 | 13.6 |
| 2 | 25 | 1.20 | 0.780 | 1.4 | 23.8 |
| 3 | 25 | 1.20 | 0.780 | 1.5 | 25.6 |
| 4 | 25 | 1.20 | 0.780 | 1.6 | 28.5 |
